Shears

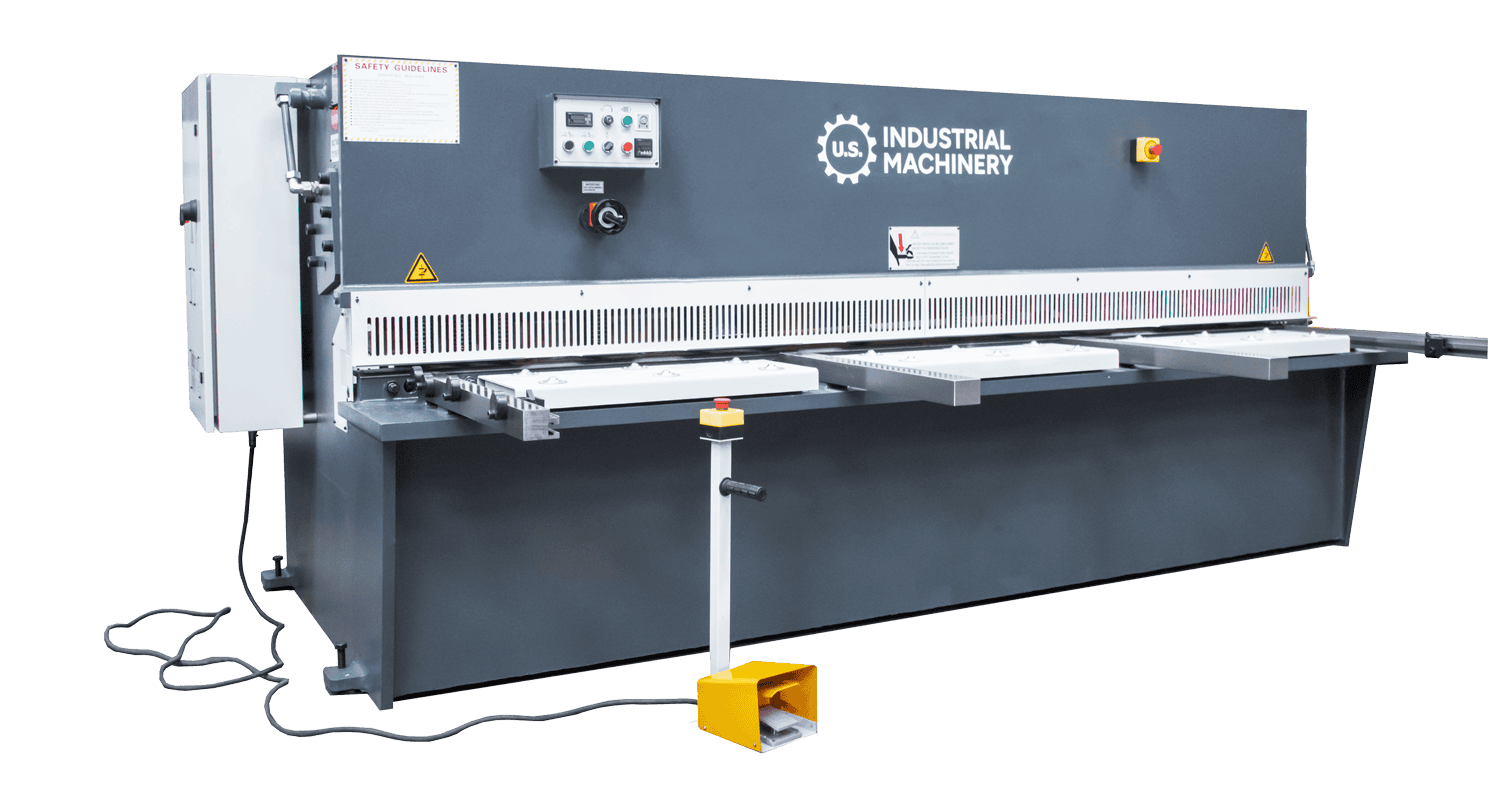

Hydraulic Shears Engineered for Accurate, Reliable Cutting

From everyday fabrication to high-capacity production, U.S. Industrial Machinery offers a comprehensive selection of manual and CNC hydraulic shears built for precision, durability, and dependable performance. Our standard models are available in 6′ to 13′ lengths with cutting capacities ranging from ¼” to ¾” mild steel. For operations with specialized requirements, we also build custom hydraulic shears with increased cutting capacities. Whether you’re looking for a standard solution or a machine tailored to your production needs, we have the expertise to help.

Click the links below to explore each hydraulic shear model, download detailed specification PDFs, and find the right machine for your application. If you need a custom-built solution, contact us for a personalized quote.

USHS6250
USHS6375
USHS6500
USHS8250
USHS8375
USHS8500
USHS8625
USHS8750
USHS10250
USHS10375
USHS10500
USHS10625
USHS10750
USHS13250
USHS13375
USHS13500
USHS13625

Contact us for a machine quote today!

Request A Quote

This video provides a detailed overview of our U.S. Industrial Hydraulic Shears

CNC Controlled Hydraulic Shear Features

Our CNC-controlled hydraulic shears automate many of the features available in the manual machines for increased precision and control. What’s great about this equipment is it can also be controlled manually when the situation calls for it. These versatile machines offer exceptional speed and accuracy and the ability to design and save your own cutting programs. Each program accepts 20 steps, and users can store up to 200 programs at one time. Automated features include:

  • Setting back-gauge position
  • Setting stroke length and blade gap
  • Custom cutting program storage

Manual Controlled Hydraulic Shears

Our manual control hydraulic shears offer easy configuration to cut materials of varying thickness with stroke length adjustments as well. Other standard features include:

  • Motorized front-operated power back-gauge with digital and mechanical readouts
  • Fine adjustment handwheel
  • Back-gauge adjustment range from ½” to 36”
  • A swing-up mechanism for cut depths larger than 36″

Learn More in Our Brochure

Built for performance. Backed for the long haul.

View our Hydraulic Shears Brochure

Hydraulic Shears at U.S. Industrial Machinery

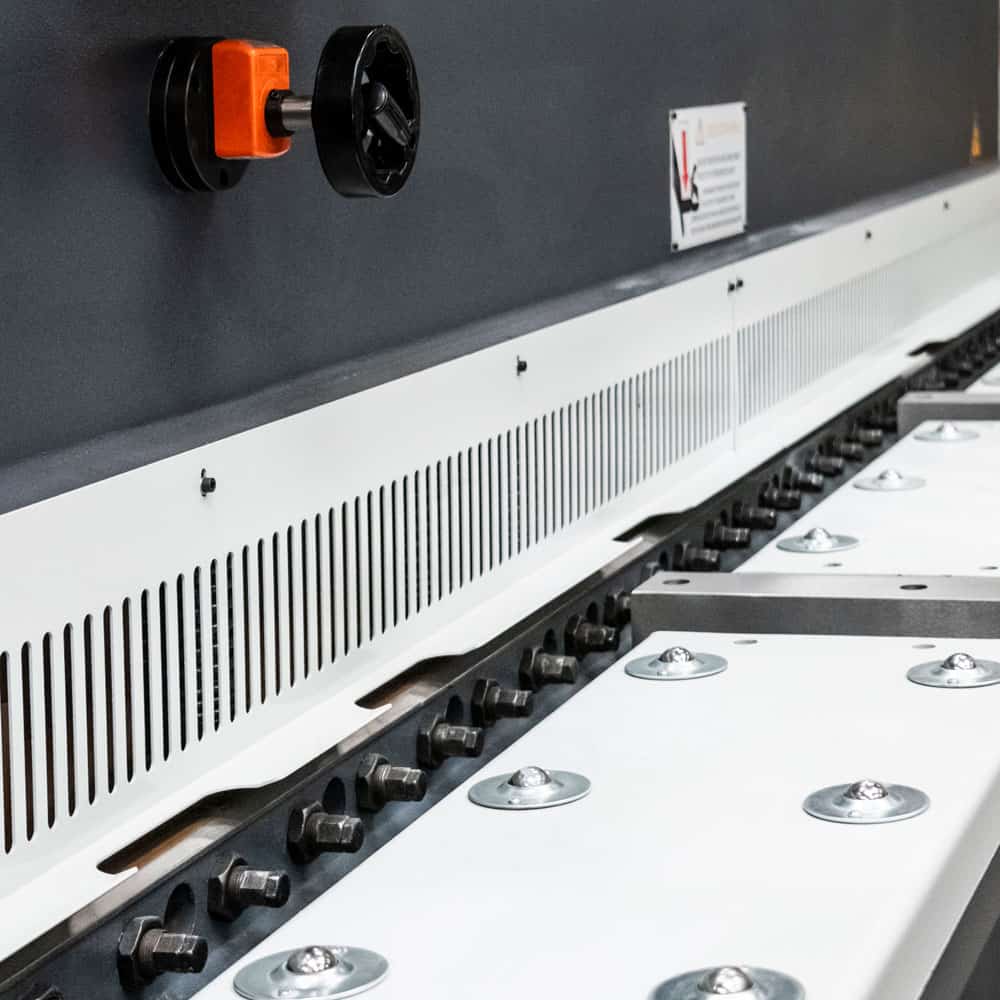

U.S. Industrial Machinery can accommodate all kinds of custom machine requests to handle your unique jobs in addition to what we have in our standard inventory. All hydraulic shears feature quick blade gap adjustment, support arms on the front of the machine, transfer tables for easily handling materials, and a foot pedal operation with an emergency stop. Our machines come with a standard 3’ squaring arm, but we offer larger squaring arms in 6′, 8′, and 10′ lengths upon request. Choose your wiring preference for 220 volts, 3-phase or 440 volts, 3-phase power.
