Plate Rolls
Metal Plate Rolling Machines
When it comes to high-quality plate roll machines, no one pairs performance with affordability like U.S. Industrial Machinery in Memphis, TN. Our machines go through rigorous testing and quality assurance checks to ensure our customers receive nothing but the best. Every piece of equipment comes with a one-year warranty, and our team offers continuing support to customers for troubleshooting and specification questions throughout the life of your machine for the original purchaser. You’ll always have a U.S. Industrial Machinery specialist available when you need us.
Contact us for a machine quote today!
This video provides a detailed overview of our U.S. Industrial Plate Rolls

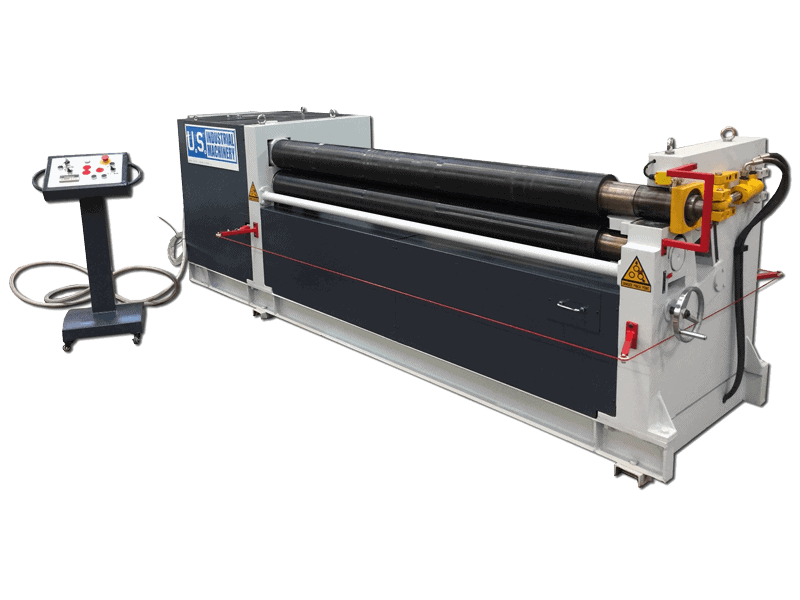

Plate Rolls for Every Job
Our plate rolling machines are gear-driven and can be adjusted to pinch varying metal thicknesses up to the machine’s capacity. The LED display on the controller shows the position of the bending roll with memory storage so operators can repeat bends accurately. With the operator control panel’s long extension cord, it’s easy to maneuver the controls to work from either side of the machine. The electrical cabinet uses standard electrical components that are always in stock in our warehouse for fast replacements when needed.
Standard Model Plate Roll Features
Our standard model plate rolling machines are available in four sizes; 5′ x 3/8″, 6′ x 5/16″, 8′ x ¼”, and 10’ x ¼”. Custom-built machines are also available for needs outside of these sizes. Contact us to learn more about special requests. Features on all standard models include:
- Powered roll adjustment
- Precision pinch roll adjustment
- Top roll swing-out
- Emergency trip line
- Pedestal control
- Quick roll adjustment
- Roll position indicators
- Crowned rolls
- High torque gearbox
- Low voltage push-button controls
Capacity
Pre Bend Capacity
Top Roll Diameter
Bottom Roll Diameter
Bending Roll Diameter
Speed
Main Drive Motor
Adjustment Motor
Machine Length
Machine Width
Machine Height
Net Weight
Voltage
5’ x 3/8”
5’ x 3/8 Mild Steel @ 65000 PSI
3/8” Mild Steel @ 65000 PSI
6.57” / 6.7” (ends/middle)
6.57” / 6.7” (ends/middle)
6.22” / 6.34” (ends/middle)
12.5 F.P.M.
5.5 HP Gear Reduction Drive
3 HP
127”
54”
44”
4150 lbs
220/440 3 PH
6’ x 5/16”
6’ x 5/16 Mild Steel @ 65000 PSI
5/16” Mild Steel @ 65000 PSI
6.57” / 6.7” (ends/middle)
6.57” / 6.7” (ends/middle)
6.22” / 6.34” (ends/middle)
12.5 F.P.M.
5.5 HP Gear Reduction Drive
3 HP
144”
54”
44”
6800 lbs
220/440 3 PH
8’ x 1/4”
8’ x 1/4 Mild Steel @ 65000 PSI
1/4” Mild Steel @ 65000 PSI
7.4” / 7.5” (ends/middle)
7.4” / 7.5” (ends/middle)
6.67” / 7.1” (ends/middle)
12.5 F.P.M.
5.5 HP Gear Reduction Drive
3 HP
160”
54”
44”
8025 lbs
220/440 3 PH
10’ x 1/4”
10’ x 1/4 Mild Steel @ 65000 PSI
1/4” Mild Steel @ 65000 PSI
7.4” / 7.5” (ends/middle)
7.4” / 7.5” (ends/middle)
6.67” / 7.1” (ends/middle)
12.5 F.P.M.
5.5 HP Gear Reduction Drive
3 HP
177”
54”
44”
9250 lbs
220/440 3 PH
